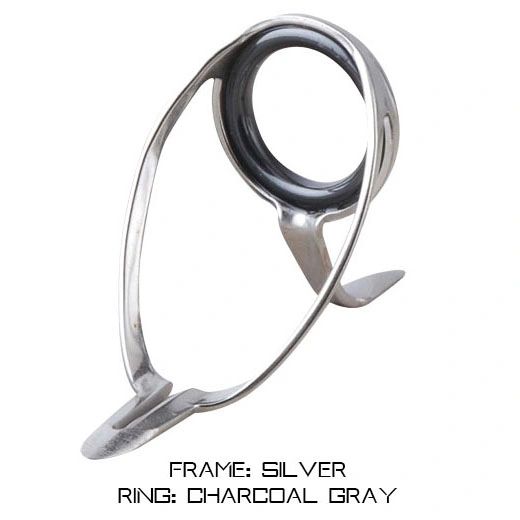

Alps XXNLG Regular XN (XN) Casting Guides - Silver
$2.73
- Exclusive by ALPS
- Recessed Ring Design (RRD)
- Braid Proof
- Pre Ground Foot
- Double Foot with Custom Frame Brace
- 28% Lighter Than Other Competing Models
- Extreme Corrosion Resistance
- Recommended for 25-50lb. Test Line
- Frame:
- SS316 Stainless Steel
- Rings:
- Hard Aluminum Oxide
Since their inception, the ALPS regular XN guides have proven to be ideal when looking for a casting guide in medium or medium-heavy applications. The ALPS regular XN guides are for 25-50lb test, and boast SS316 stainless steel frame construction that also provides extreme corrosion resistance. The ALPS regular XN guides have the unique recessed ring design (RRD) creating a wider gluing surface between the ceramic ring and guide frame. This inevitably enhances the bond between the ring and frame while also protecting the ring from impact. Like all regular XN guides, the unique frame design virtually eliminates all line wrap while increasing strength without adding needless weight.
| GUIDE SIZES | RING SIZE (MM OD) | RING SIZE (MM ID) | LENGTH (MM) | LENGTH (IN) | HEIGHT (MM) | HEIGHT (IN) | WEIGHT (GRAINS) | WEIGHT (OZ) |
|---|---|---|---|---|---|---|---|---|
| 8 | 8.00 | 5.50 | 27.80 | 1.09 | 14.10 | 0.555 | 13.5 | 0.030 |
| 10 | 10.00 | 6.80 | 33.48 | 1.31 | 17.00 | 0.669 | 21.6 | 0.049 |
| 12 | 12.00 | 8.10 | 37.70 | 1.48 | 19.00 | 0.752 | 30.2 | 0.069 |
| 16 | 16.00 | 10.80 | 45.97 | 1.81 | 24.60 | 0.968 | 45.9 | 0.105 |
| 20 | 20.00 | 13.70 | 57.01 | 2.24 | 32.13 | 1.260 | 86.4 | 0.197 |
| 25 | 25.00 | 17.60 | 66.72 | 2.62 | 40.93 | 1.610 | 123.1 | 0.281 |
| 30 | 30.00 | 23.20 | 82.64 | 3.25 | 51.21 | 2.010 | 191.7 | 0.438 |
