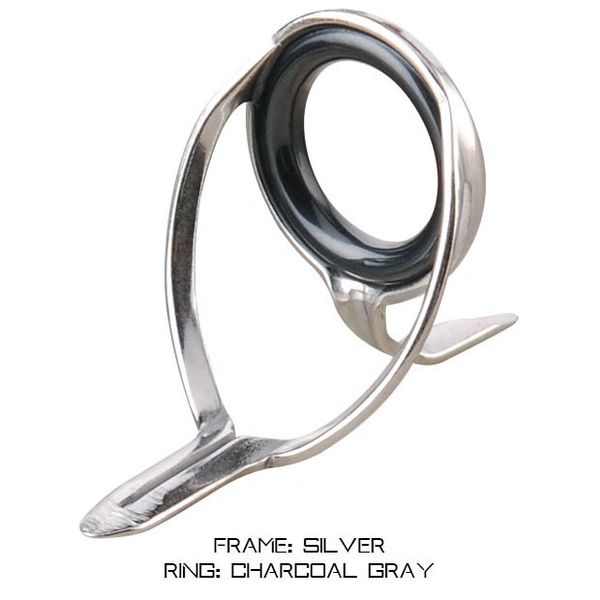

Alps XMXNLG Medium XN (MXN) Casting Guides - Silver

$2.42

  • Exclusive by ALPS
  • Recessed Ring Design (RRD)
  • Braid Proof
  • Pre Ground Foot
  • Double Foot with Custom Frame Brace
  • 28% Lighter Than Other Competing Models
  • Extreme Corrosion Resistance
  • Recommended for 12-30lb. Test Line
  • Frame:
  • SS316 Stainless Steel
  • Rings:
  • Hard Aluminum Oxide



Nearly identical to the ALPS medium MXN guide in titanium, this is the stainless steel version to turn to when building your rod. These medium MXN guides are superb when looking for a casting guide for light to medium applications. Rated for 12-30lb test, due to the SS316 stainless steel frame construction, it also provides extreme corrosion resistance. ALPS medium MXN guides in stainless steel feature the sought out recessed ring design (RRD) creating a wider gluing surface between the ceramic ring and guide frame, enhancing the bond between the ring and frame while also protecting the ring from impact. One of the many unique features, that sets the medium MXN guides apart from the competition, is the frame design. This frame design nearly eliminates all line wrap while increasing strength without adding needless weight.

GUIDE SIZES RING SIZE (MM OD) RING SIZE (MM ID) LENGTH (MM) LENGTH (IN) HEIGHT (MM) HEIGHT (IN) WEIGHT (GRAINS) WEIGHT (OZ)
6 6.00 3.70 17.43 0.686 9.54 0.376 4.7 0.011
7 7.00 4.70 18.67 0.735 11.34 0.446 5.5 0.012
8 8.00 5.50 22.96 0.904 12.19 0.480 9.3 0.021
10 10.00 6.90 27.17 1.070 15.09 0.594 14.6 0.033
12 12.00 8.30 27.68 1.090 18.15 0.715 18.4 0.042
16 16.00 10.80 35.56 1.400 22.51 0.886 33.3 0.076
20 20.00 13.90 46.78 1.840 31.11 1.220 52.6 0.120
25 25.00 17.60 53.89 2.122 41.08 1.617 99.0 0.226
30 30.00 23.54 66.7 2.625 21.35 2.021 141.7 0.324
