Alps XIVHZG Polished High Frame Spinning Guide - Zirconium Ring
$2.76
$2.35

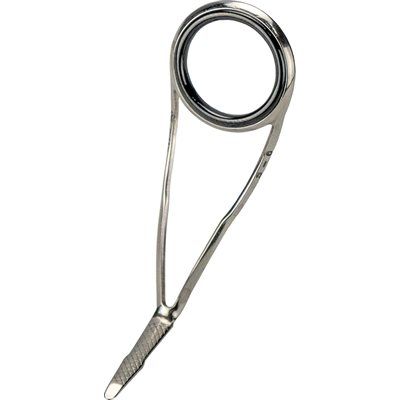

ALPS XIVHZG Polished High Frame Spinning Guide
ALPS iV match style spinning guide. These are perfect for a modern approach to building a centerpin or match style rod. They also work well on lighter action spinning blanks.
- Tangle Free Design
- Extreme Corrosion Resistance
- Recessed Ring Design
- Braid Proof
- Pre Ground Foot
- Frame: SS316 Stainless Steel
- Rings: Zirconium, or Hard Aluminum Oxide
- Matching Tip Tops:
- ALPS PP Tip Top, PA;
- ForeCast P, P Flanged Tip Top
| Guide Size | RING SIZE (MM OD) | RING SIZE (MM ID) | LENGTH (MM) | LENGTH (IN) | HEIGHT (MM) | HEIGHT (IN) | WEIGHT (GRAINS) | WEIGHT (oz) |
| 5.5 | 5.5 | 3.39 | 14.25 | 0.561 | 10.5 | 0.413 | 4.375 | 0.01 |
| 6L | 6 | 3.89 | 12.98 | 0.511 | 11.83 | 0.466 | 4.375 | 0.01 |
| 6M | 6 | 3.93 | 16.75 | 0.659 | 17.5 | 0.689 | 4.375 | 0.01 |
| 7L | 7 | 4.72 | 12.45 | 0.49 | 13.5 | 0.531 | 6.563 | 0.015 |
| 8H | 8 | 6.07 | 25.8 | 1.016 | 24.64 | 0.97 | 6.563 | 0.015 |
| 10H | 10 | 7.45 | 30.25 | 1.191 | 27.5 | 1.083 | 10.938 | 0.025 |
| 12H | 12 | 9.09 | 33.375 | 1.314 | 32.1875 | 1.267 | 15.313 | 0.035 |
| 16H | 16 | 11.76 | 35 | 1.378 | 42.1875 | 1.661 | 30.625 | 0.07 |
| 20H | 20 | 15.06 | 40.48 | 1.594 | 49.64 | 1.954 | 45.938 | 0.105 |
| 25H | 25 | 19.37 | 44.15 | 1.738 | 55.04 | 2.167 | 67.813 | 0.155 |
