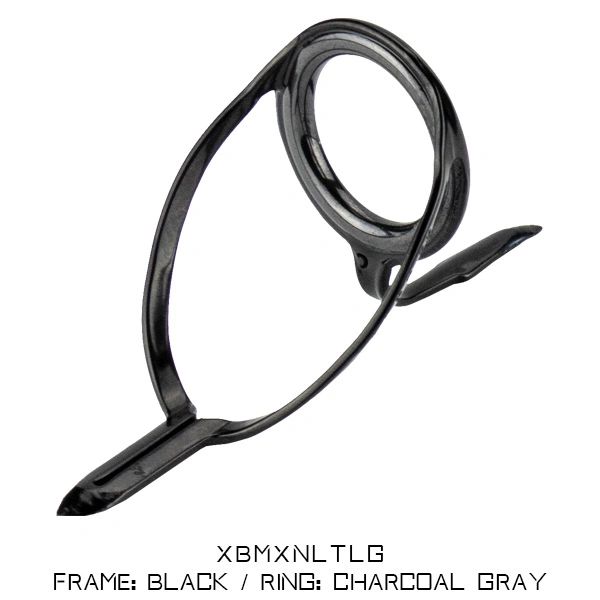

Alps XBMXNLTLG "Lowrider" Medium XN (MXN) Casting Guides - Black
$2.65
-
Exclusive by ALPS
- Recessed Ring Design (RRD)
- Braid Proof
- Pre Ground Foot
- Double Foot with Custom Frame Brace
- 28% Lighter Than Other Competing Models
- Extreme Corrosion Resistance
- Recommended for 12-30lb. Test Line
- Frame:
- SS316 Stainless Steel
- Rings:
- Hard Aluminum Oxide
ALPS developed a new series of guides that place the line closer to the rod blank to reduce side-to-side torque that is generated while fighting a fish. The lower ring height also allows better transfer of the blank’s power into the cast.
| RING SIZE(MM OD) | RING SIZE(MM ID) | LENGTH(MM) | LENGTH(IN) | HEIGHT(MM) | HEIGHT(IN) | WEIGHT(GRAINS) | WEIGHT(OZ) |
|---|---|---|---|---|---|---|---|
| 8 | 5.55 | 23.63 | 0.930 | 11.75 | 0.463 | 8.75 | 0.02 |
| 10 | 7.03 | 26.80 | 1.055 | 14.25 | 0.561 | 13.125 | 0.03 |
| 12 | 8.18 | 30.73 | 1.210 | 16.05 | 0.632 | 17.50 | 0.04 |
| 16 | 10.60 | 38.60 | 1.520 | 21.75 | 0.856 | 35.00 | 0.08 |
| 20 | 13.92 | 25.80 | 1.016 | 27.14 | 1.069 | 52.50 | 0.12 |
