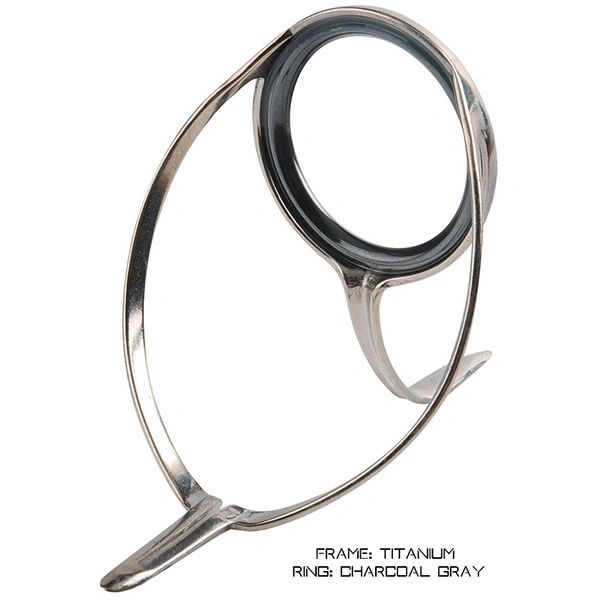

Alps TIMXNZG Medium XN (MXN) Casting Guides - Titanium Frame

$7.47 $6.35

The ALPS medium MXN guide in titanium is the only casting guide when searching for a light to medium application. The medium MXN guides can be used in traditional casting setups as well as some switch and spey rod applications. Rated for a beefy 12-30lb test, but weighing in 40% lighter than comparable tri-legged guides, the ALPS medium MXN guides in titanium is the guide to turn. The medium MXN guides feature recessed ring design (RRD) creating a wider gluing surface between the ceramic ring and guide frame. This enhances the bond between the ring and frame while also protecting the ring from impact. The corrosion proof ALPS medium MXN guides in titanium have a unique frame that nearly eliminates all line wrap while increasing strength without adding needless weight.

GUIDE SIZES	RING SIZE (MM OD)	RING SIZE (MM ID)	LENGTH (MM)	LENGTH (IN)	HEIGHT (MM)	HEIGHT (IN)	WEIGHT (GRAINS)	WEIGHT (OZ)
6	6.00	3.70	17.43	0.686	9.54	0.376	3.2	0.007
7	7.00	4.70	18.67	0.735	11.34	0.446	3.9	0.009
8	8.00	5.50	22.96	0.904	12.19	0.480	6.6	0.015
10	10.00	6.90	27.17	1.070	15.09	0.594	10.0	0.022
12	12.00	8.25	27.68	1.090	18.15	0.715	12.9	0.029
16	16.00	10.75	35.56	1.400	22.51	0.886	24.6	0.056
20	20.00	13.90	46.78	1.840	31.11	1.220	42.5	0.097
25	25.00	17.60	53.89	2.122	41.08	1.617	68.2	0.115
30	30.00	23.44	67.30	2.650	50.29	1.980	104.7	0.239
40	40.00	29.31	89.60	3.520	63.24	2.490	180.2	0.411
