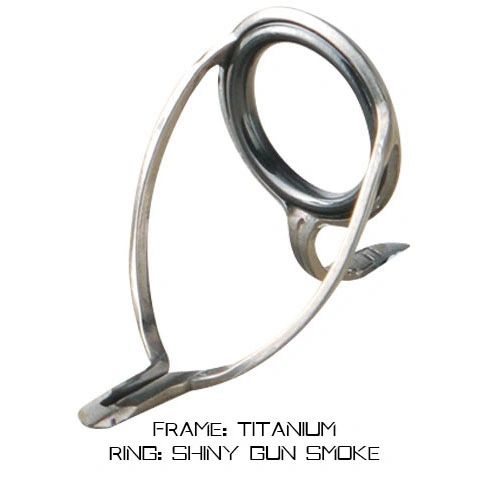

Alps TILXNZG Light XN (LXN) Casting Guides - Titanium Frame

$5.92 $4.75

  • When looking for a light framed casting guide, the ALPS light LXN in titanium is the best option. Rated for up to 17lb test, but weighing in at 40% lighter than comparable tri-legged guides thanks to the titanium frame construction. The ALPS light LXN guides in titanium also provide 100% corrosion proof. Exclusive recessed ring design (RRD) creates a wider gluing surface between the ceramic ring and guide frame, enhancing the bond between the ring and frame while also protecting the ring from impact. The ALPS light LXN guides unique frame design nearly eliminates line wrap and increases strength without adding needless weight.

    GUIDE SIZES RING SIZE (MM OD) RING SIZE (MM ID) LENGTH (MM) LENGTH (IN) HEIGHT (MM) HEIGHT (IN) WEIGHT (GRAINS) WEIGHT (OZ)
    6 6.00 3.70 16.75 0.660 9.49 0.374 3.1 0.007
    7 7.00 4.700 18.19 0.716 11.26 0.444 4.0 0.009
    8 8.00 5.50 20.70 0.815 12.78 0.503 5.4 0.012
    10 10.00 6.90 25.26 0.995 16.25 0.640 8.3 0.019
    12 12.00 8.25 28.40 1.180 18.35 0.723 12.0 0.027
    16 16.00 10.75 37.15 1.460 23.21 0.914 20.5 0.046

    Part Numbers:
    TILXNZG
