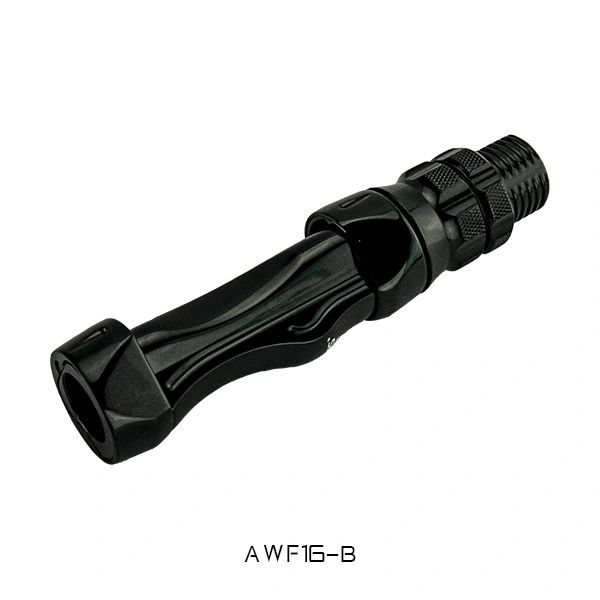

Alps AWF Wave Form Aluminum Reel Seat
The ALPS Wave Form reel seats blend beauty with rugged dependability. This exclusive ALPS design is fully CNC machined from 6061-T6 marine grade aluminum, then given a hard anodized coating to ward off corrosion. The gorgeous rising and falling pattern of the Wave Form gives these reel seats a unique and distinguished look all their own. For strength, we use a double lock nut design with delrin spacers to firmly hold your reel in place. The semi-triangular shape keeps the front hood and slide band perfectly aligned. Thanks to the ergonomics, you can rest assured that each Wave Form reel seat is supremely comfortable for all day use. Choose from four different sizes and two different color schemes to easily complement any rod.
Suggested trim ring: TRS
| PART # | LENGTH (MM) | LENGTH (IN) | ID (MM) | ID (IN) |
|---|---|---|---|---|
| AWF14 | 112.00 | 4.409 | 14.00 | 0.551 |
| AWF16 | 122.00 | 4.803 | 16.00 | 0.630 |
| AWF18 | 138.00 | 5.118 | 17.30 | 0.681 |
| AWF20 | 138.00 | 5.433 | 19.30 | 0.760 |
